Power electronics

Power Control and Distribution Unit

12 V to 100 V MPPT and DET controllers with customizable distribution channels and >92% conversion efficiency.

12 / 28 / 42 / 100 V bus50 W – 20 kW> 92% efficiency

Specifications

Models and specifications

Review the published parameters below and request the applicable datasheet and test conditions for the selected model.

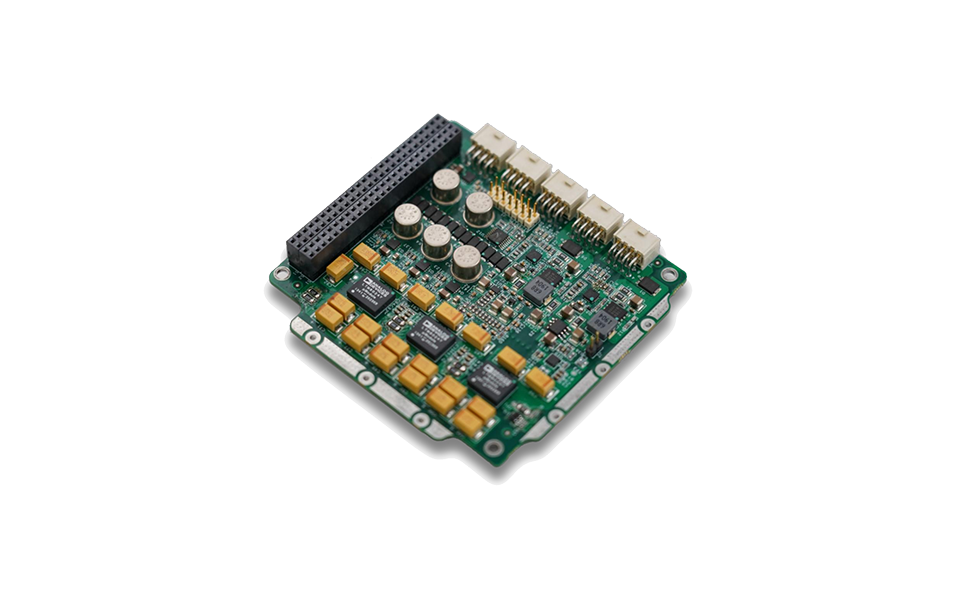

Bus voltage	12 V
Load	50 W
Ripple	< 0.15 V
Control	Maximum power point tracking

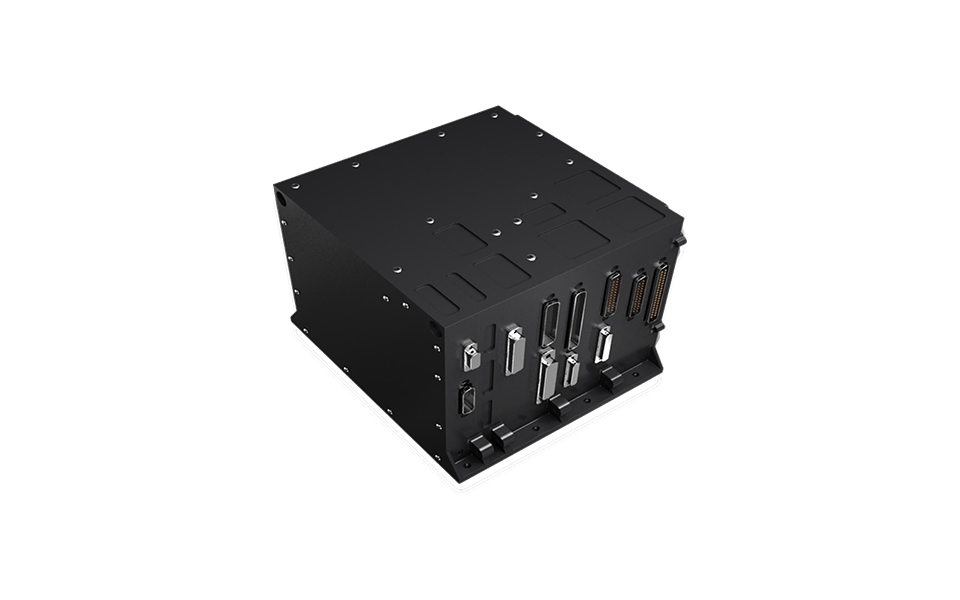

Bus voltage	28 V
Load	100–500 W
Ripple	< 0.15 V
Control	Maximum power point tracking

Bus voltage	100 V
Load	8–20 kW
Ripple	< 800 mV
Control	Charge / discharge and shunt control

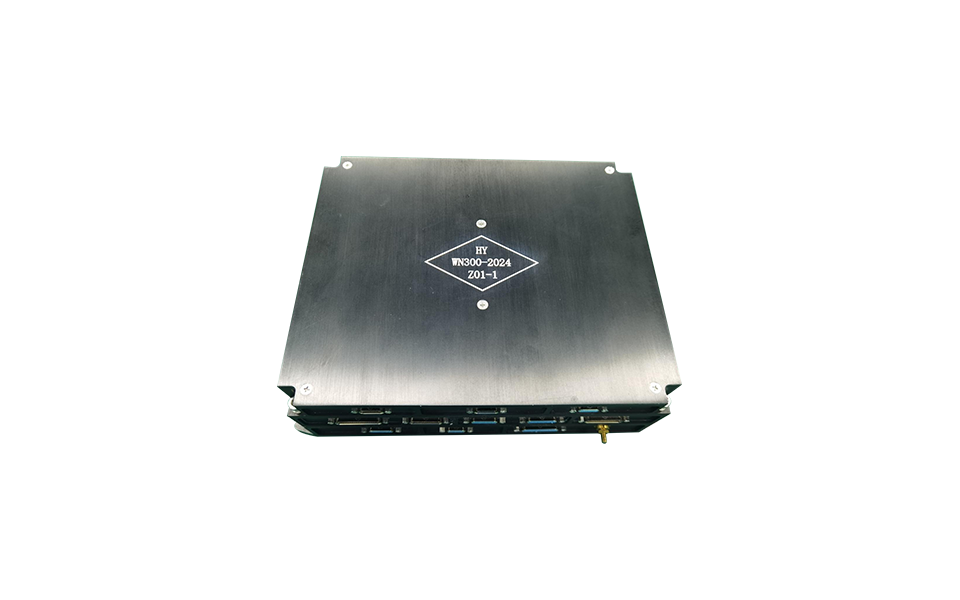

Bus voltage	28 V
Load	100–2000 W
Ripple	< 0.3 V
Control	Charge / discharge and shunt control

Bus voltage	42 V
Load	1–8 kW
Ripple	< 0.3 V
Control	Charge / discharge and shunt control
